Inquiry:

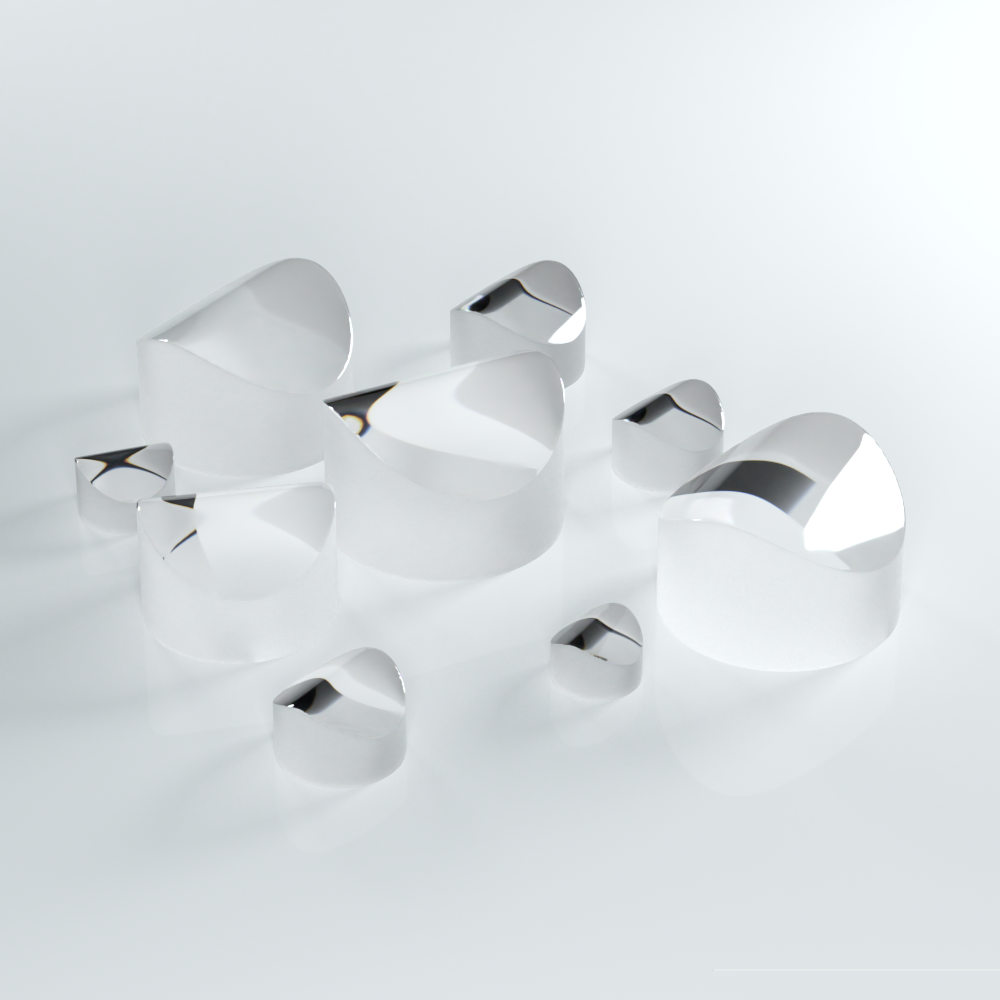

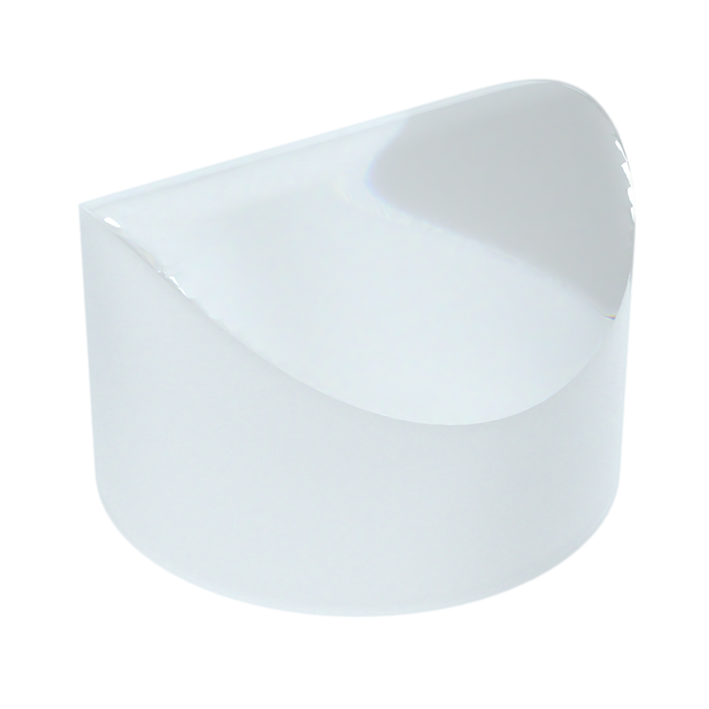

Powell lens
Diameter: 5mm - 200mm ± 0.1mm
Dimensional tolerance: ±0.05mm
Transmittance: 90%-99%
Lens alignment error: ≤3 arc min
Product description:

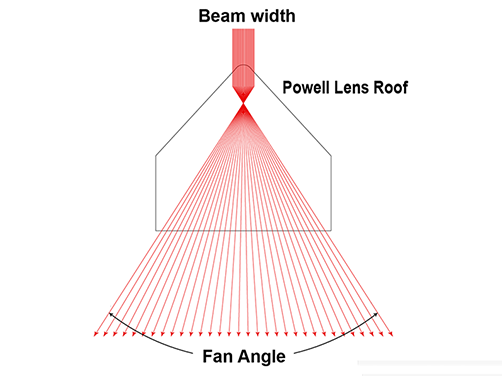

The output line of the Powell lens has vertex aspheric curvature, and the energy is uniformly distributed. In contrast, cylindrical lenses produce Gaussian beam profiles with hot-spot center points and evanescent edges. The uniformity of the output line is also related to the incident wavelength, beam size, divergence and working distance. In order to obtain a uniform energy distribution, fine-tuning and optimization of the vertex curvature of a specific laser beam is required.
Material
K9, BK7, ZnSe
5-300 mm
Dimensional deviation
±0.05 mm
Center thickness deviation
±0.05 mm
Angle error
<3 arc min
Surface Accuracy
λ/4@ 633nm or λ/10@633nm
Surface Quality (S/D)
60/40 or 20/10
Effective diameter
90%
Chamfer
<0.2*45°
AR Coating
Customized

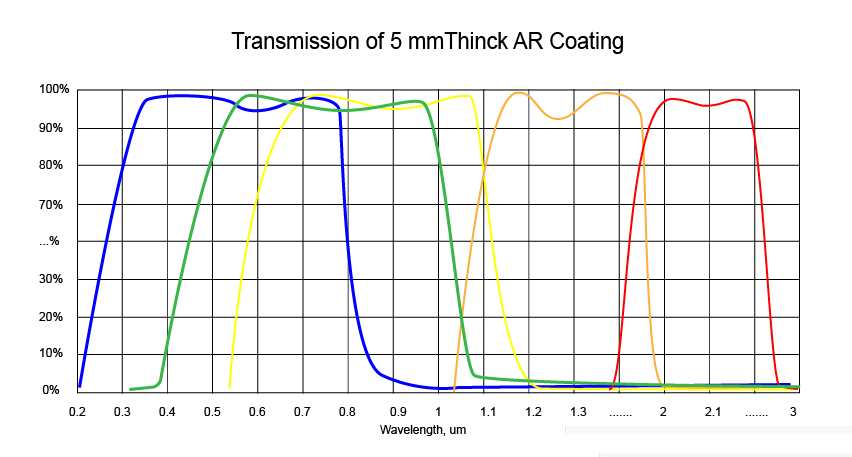

Hengpu also provides a variety of AR coatings, please consult customer service for details.
Diameter
Customized products please consult sales enginees or post us inquiry with follow:
Contact: Linda
Phone: +86 18142452910
Tel: +86 0916 2259848
Email: jessie@hp-lens.com
Add: 3 Floor West, No. 2, Industrial Corridor Equipment Zhizao Industrial Park Phase 1 Hatch Park,Nanzhen Road, Shaanxi, China 723100
We chat
