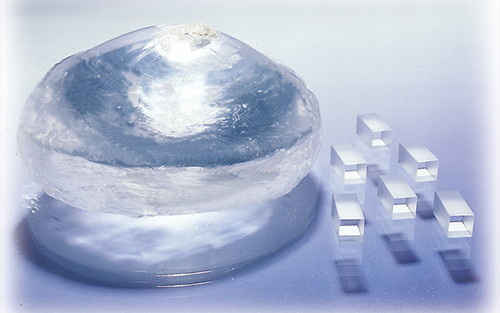

BBO crystal

The main advantages of BBO crystals:

• Wide band range (409.6-3500nm) for phase matching;

• Wide transmission band range (190-3500nm);

• High frequency doubling conversion efficiency (equivalent to 6 times that of KDP crystal);

• Good optical uniformity (δn≈10-6/cm);

• High damage threshold (1064nm10GW/cm2 with 100ps pulse width);

• Wide temperature acceptance angle (around 55°C).

The main application of BBO crystal:

• Two, three, four and five frequency multiplication of Nd:YAG and Nd:YLF lasers;

• Frequency doubling, tripling and mixing of dye lasers;

• Ti:Sapphire and Alexandrite lasers with double, triple and quadruple frequency;

• Optical Parametric Amplifier (OPA) and Optical Parametric Oscillator (OPO);

• Frequency doubling of argon ion, ruby and Cu vapor lasers;

• Research and development in the fields of high, precise and sharp laser technologies such as all-solid-state tunable lasers, ultrafast pulsed lasers, and deep ultraviolet lasers.

Service items:

As an early BBO crystal supplier, We has provided the following services for a long time with strong strength:

• Strict quality control;

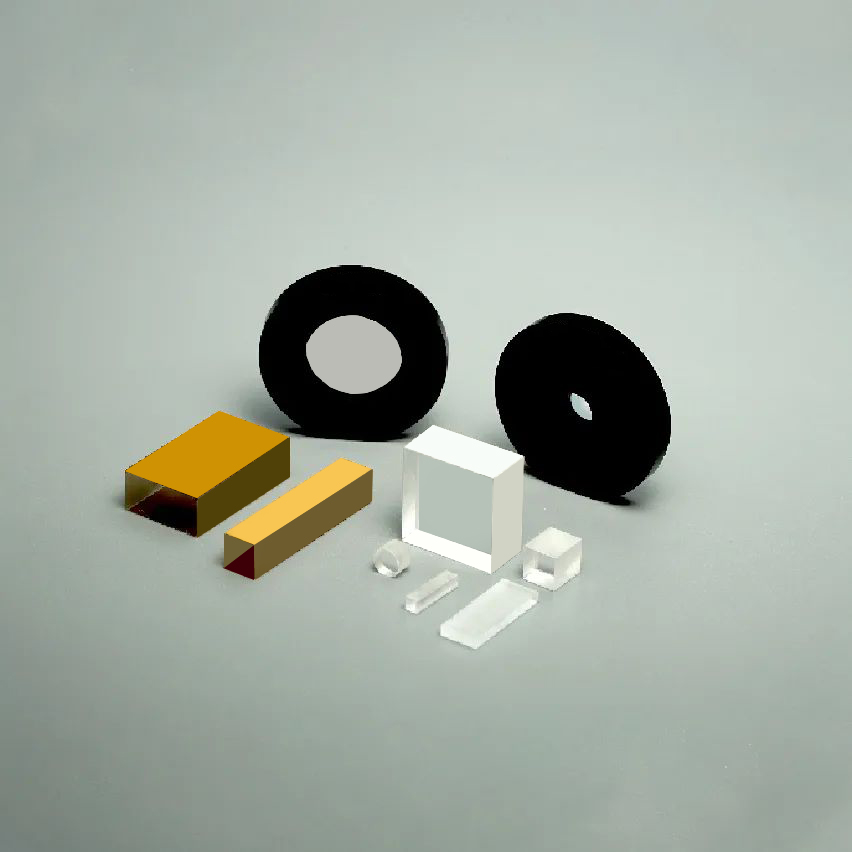

• The crystal length is from 0.005mm-25mm, and the size can reach 15X15X15mm3;

• Anti-reflection coating (AR-coating) or protective film (P-coating) crystal and re-polishing service, supporting brackets are available

• Undisputed price and quantity discounts;

• Sufficient stocking;

• Fast delivery (20 days for polished wafers and 30days for coated products)

In order to support the research and development of the most advanced laser technology, We also provides BBO equipment such as all-solid-state tunable lasers, ultrafast pulsed lasers, and DUV lasers.
