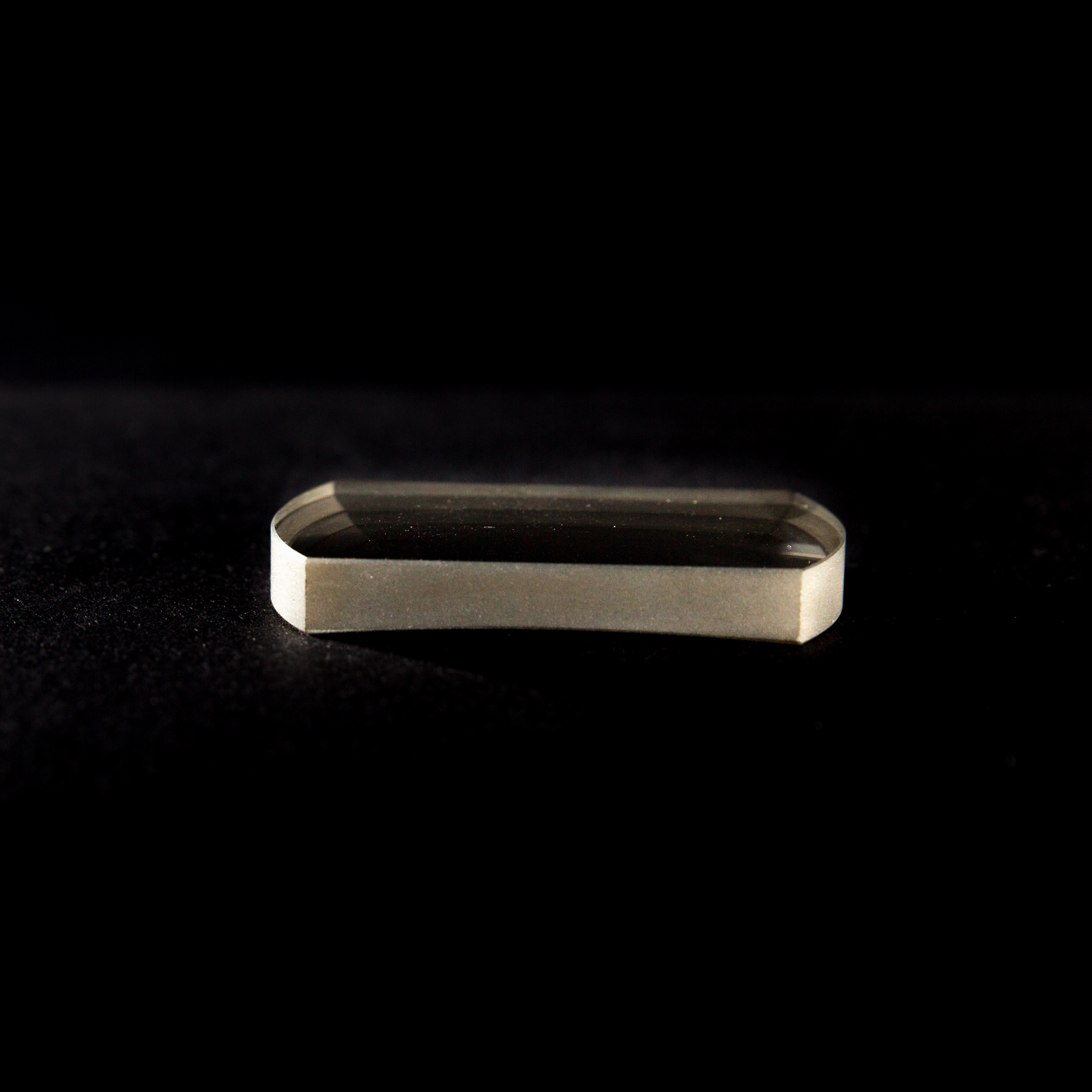

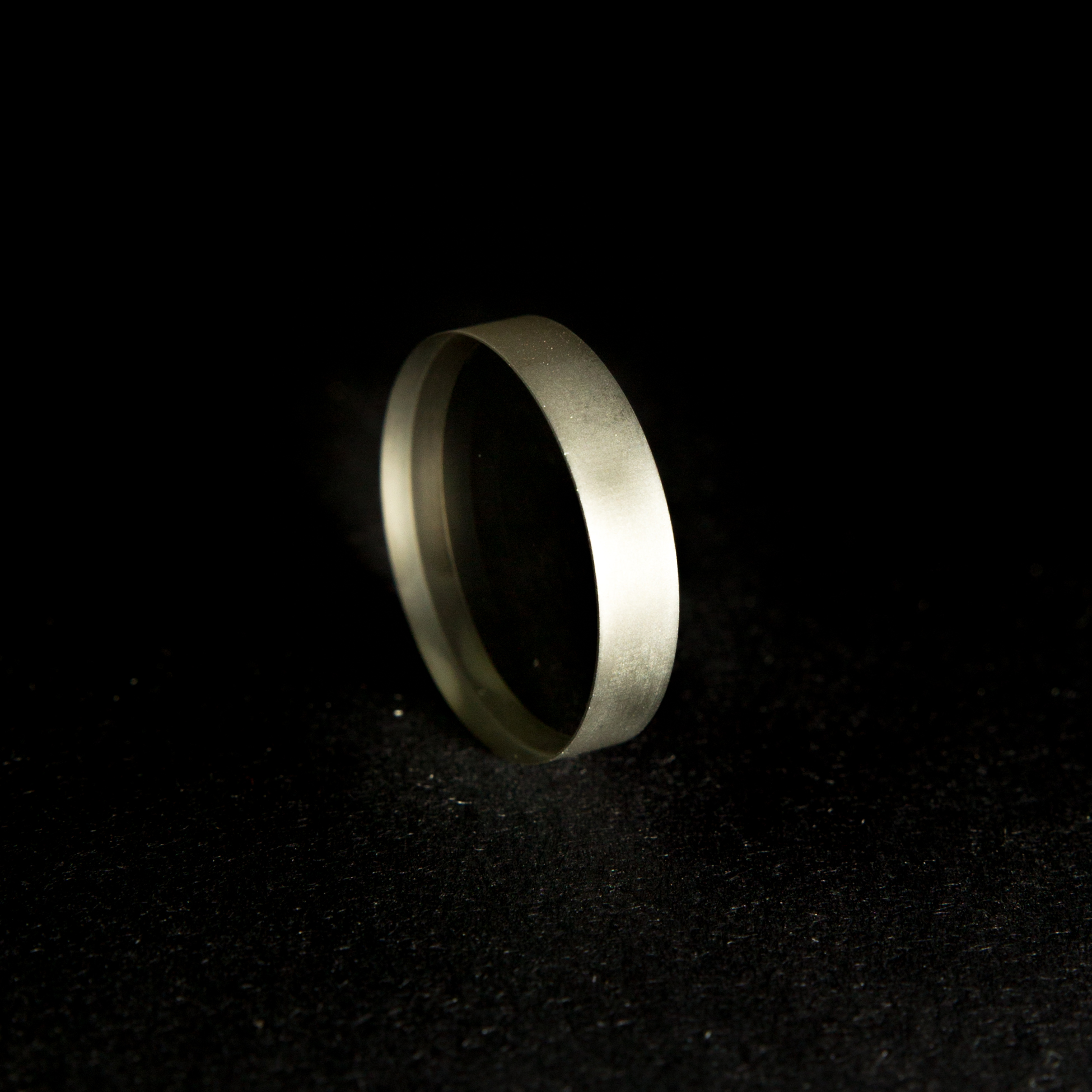

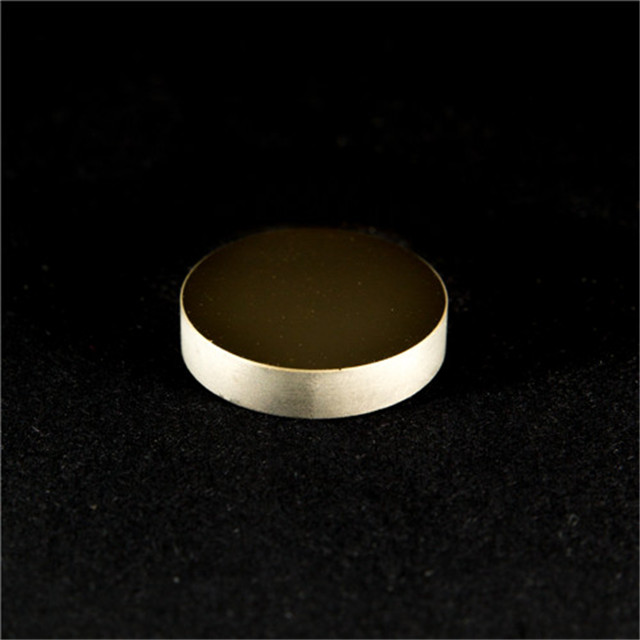

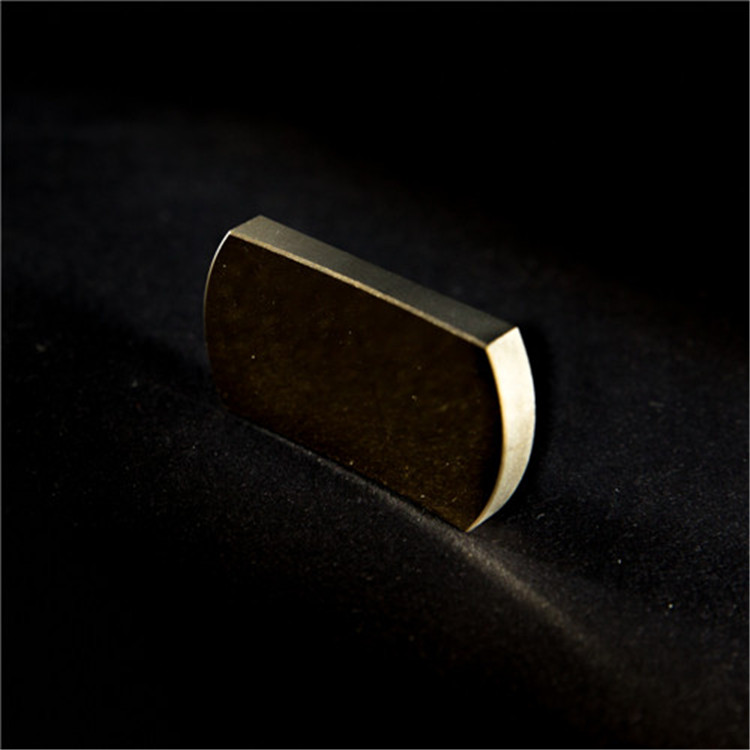

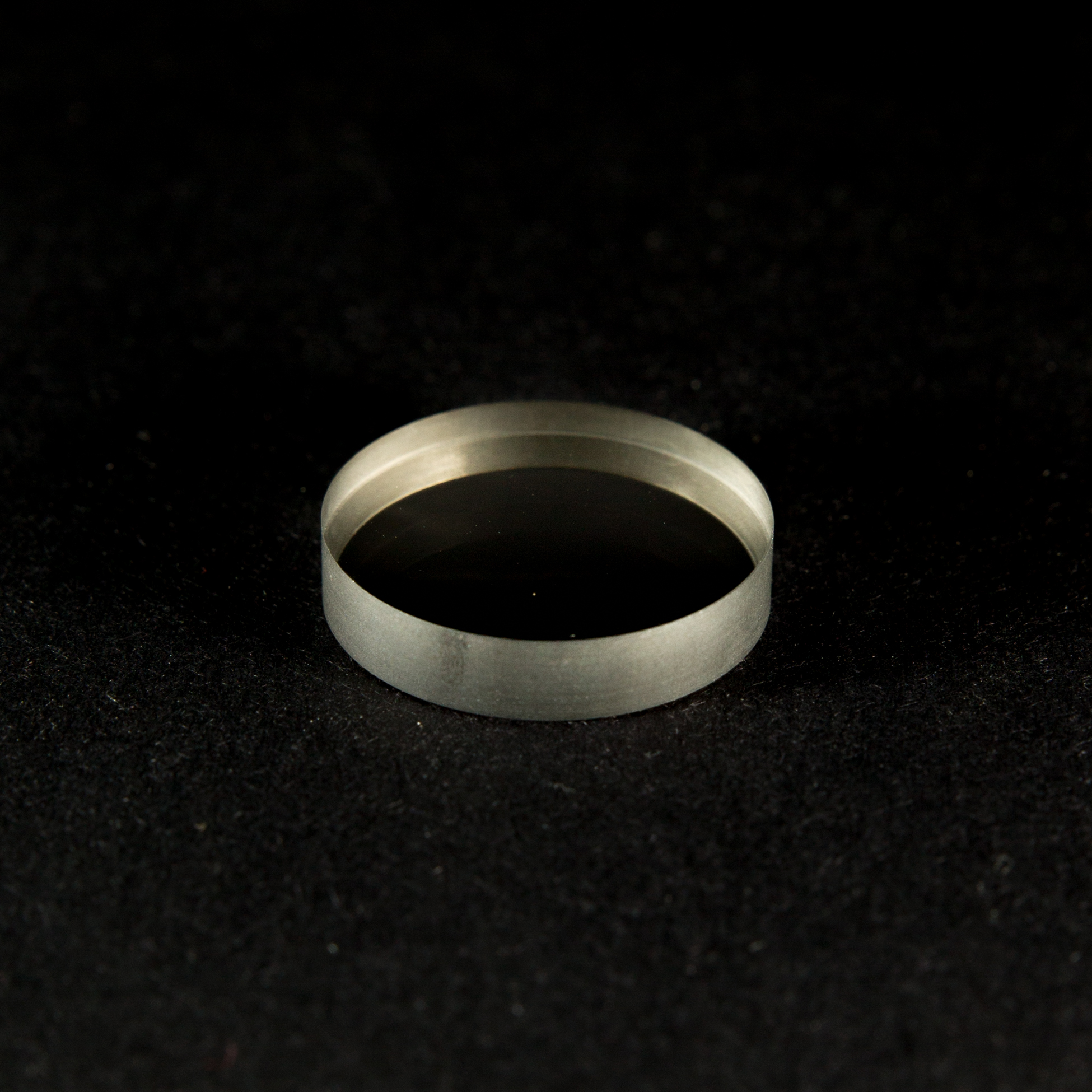

Gold-plated reflective lens

Material: Optical Glass,Bk-7

Diameter: 5mm-200mm±0.1mm

Center Thickness Tolerance: ±0.05mm

Lens Alignment Error: ≤3min

Surface Accuracy: λ/ 8 @

Surface Quality: 60/40.40/20.80/60

Effective Caliber: 90%

Coating: 190-380 nm UV AR coating 400-1200 nm visible near-infrared AR coating (532 nm single-point AR coating, 532 + 1064 nm double-point AR coating, 808 single-point AR coating, 1064 single-point AR coating ) And the bandwidth anti-reflection film of this area.
Infrared anti-reflection film: 1560 nanometer anti-reflection film, 3-5 micron anti-reflection film, 8-12 and 7-14 micron anti-reflection film.

Medium and high reflection film: 1,355 nm / 532 nm / 635 nm / 808 nm / 1064 nm single point, double point,three point laser reflection film.

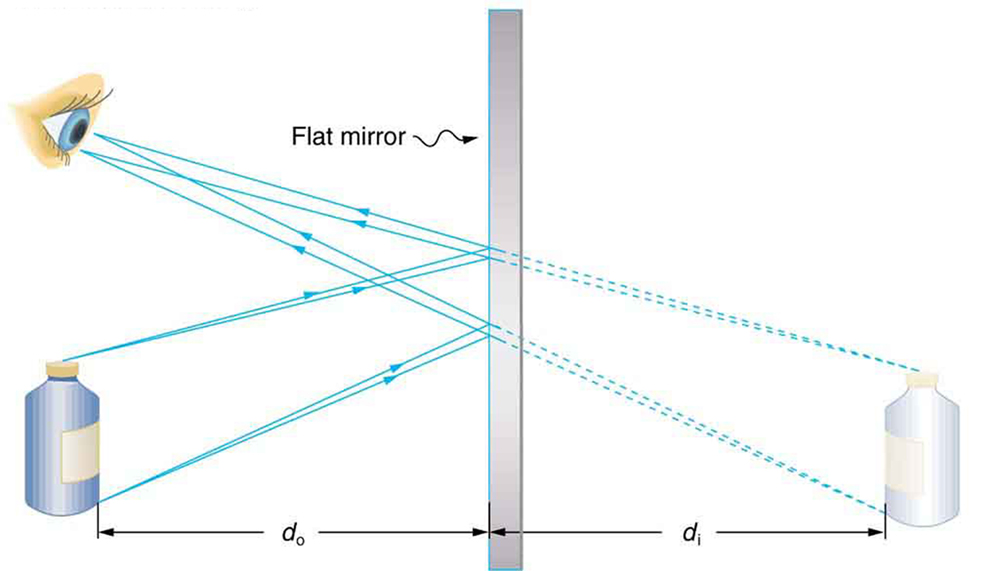

Optical Mirrors are designed to reflect light for a variety of applications, including beam steering, interferometry, imaging, or illumination. Optical Mirrors are used in a wide range of industries, such as life sciences, astronomy, metrology, semiconductor, or solar.
Hengpu photoelectric offers a range of laser, flat, metal substrate, focusing, or specialty Optical Mirrors in a multitude of reflective coating options, including Protected Aluminum, Enhanced Aluminum, Protected Silver, Protected Gold, or Dielectric. Choosing the proper reflective coating option ensures high reflectivity of the needed wavelength or wavelength range. Optical Mirrors designed for laser applications are optimized for the given laser wavelength.
