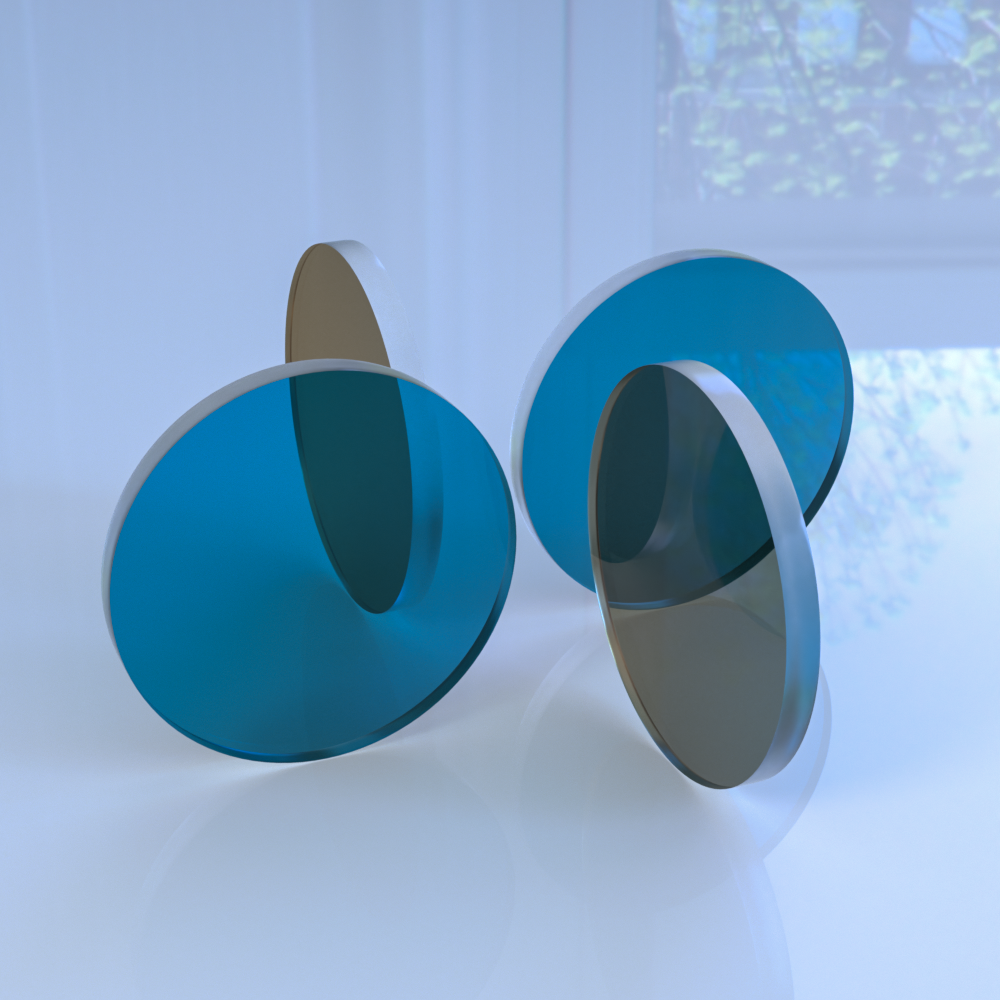

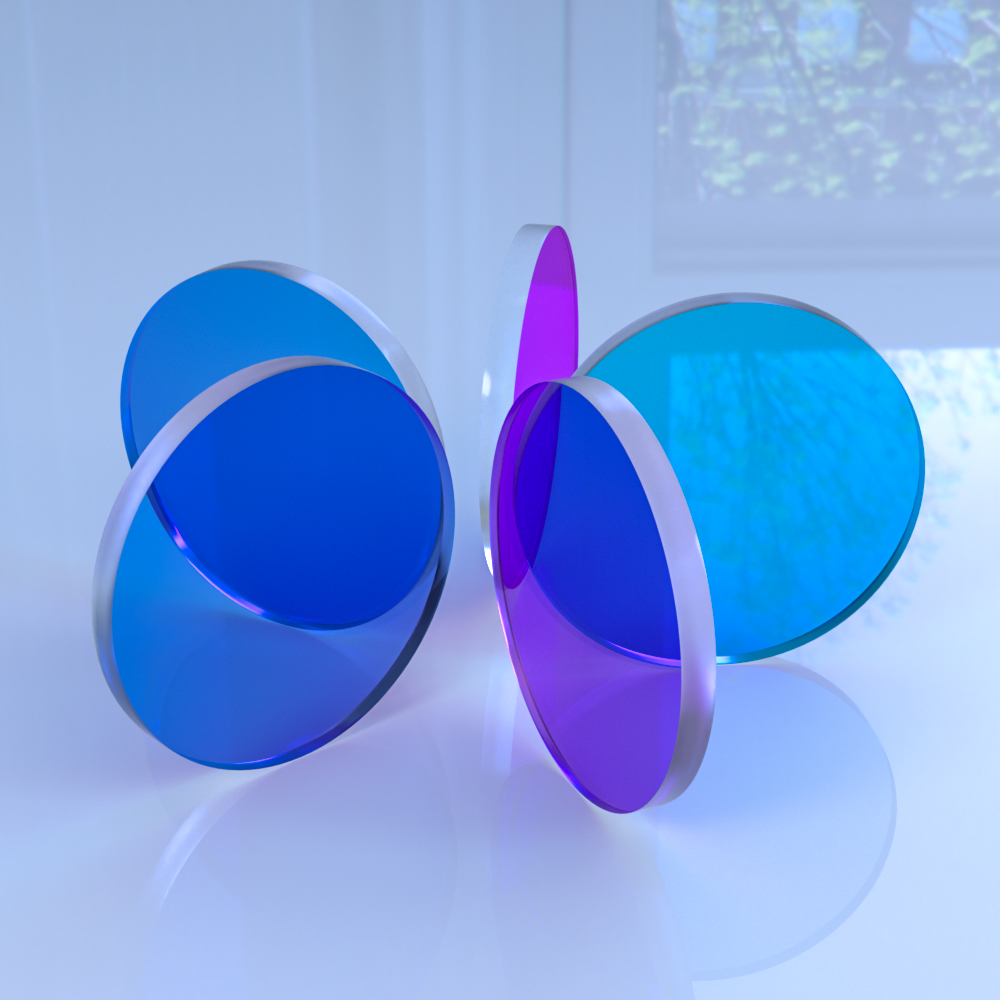

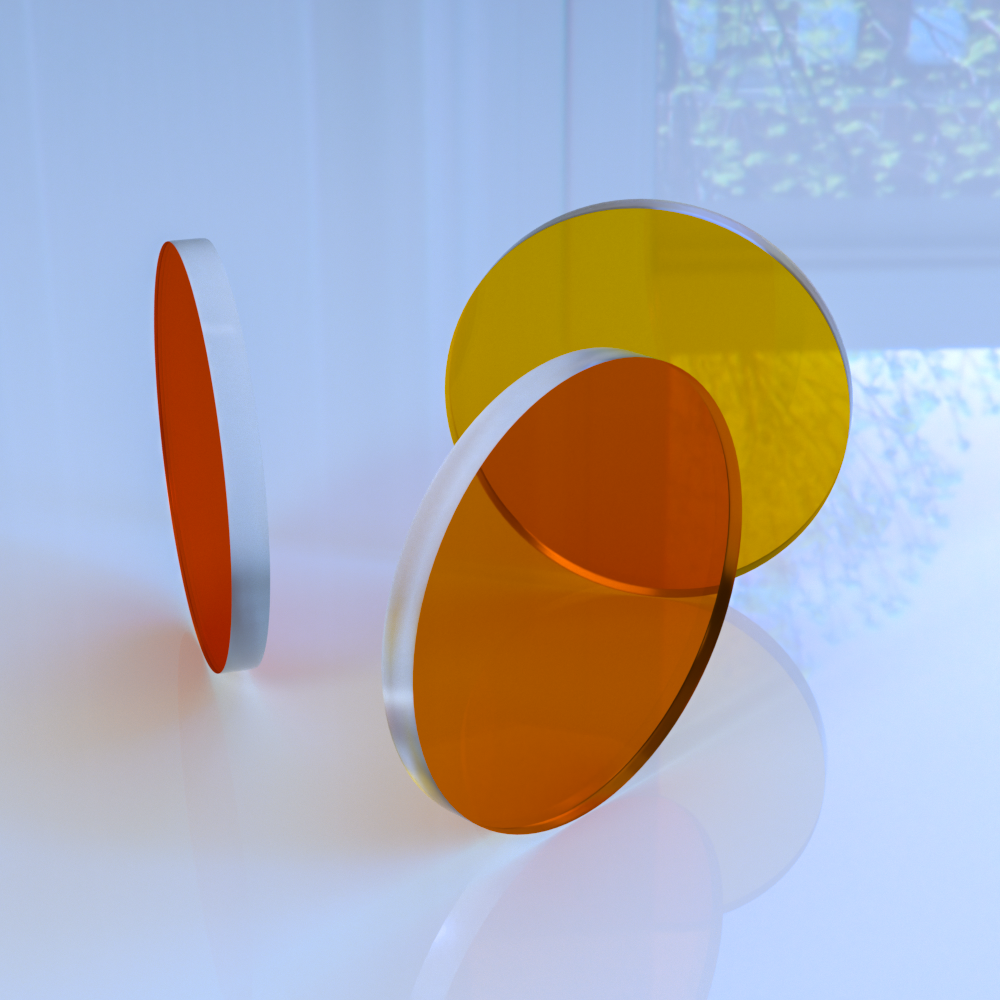

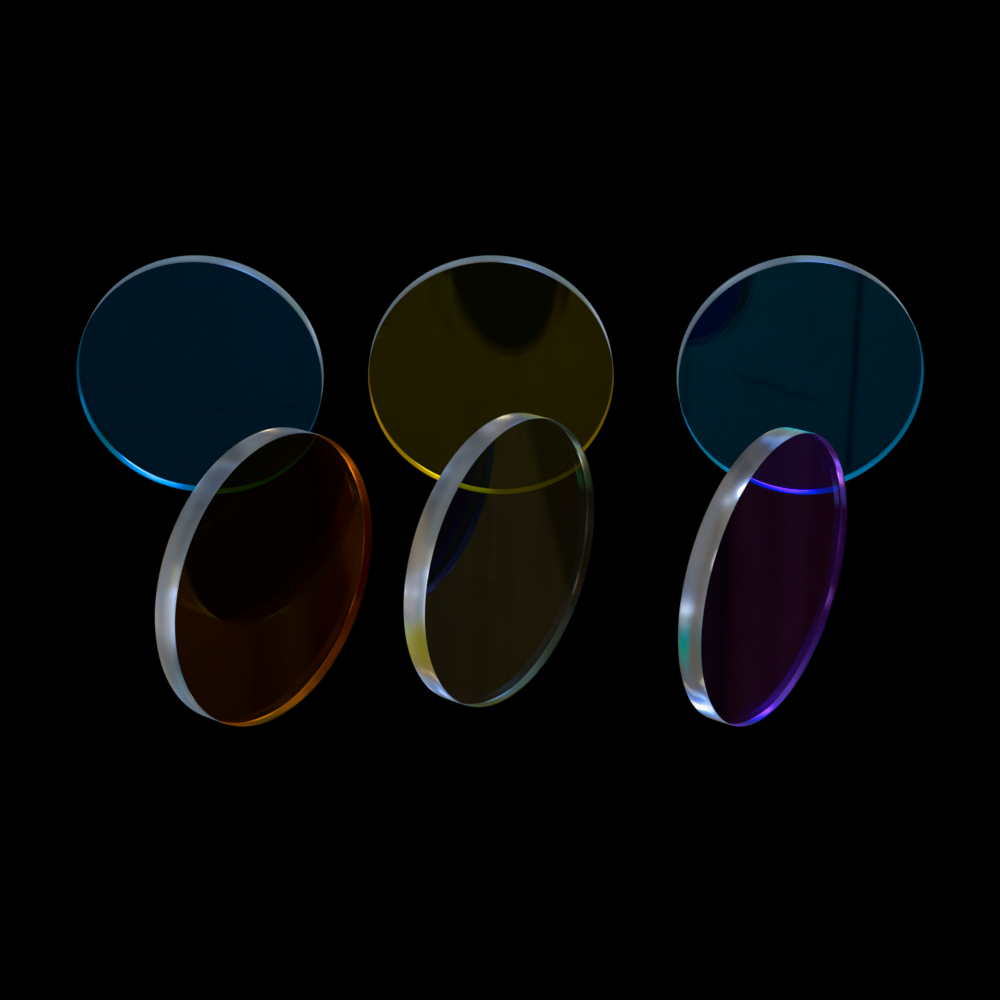

Short wave-pass fliter

Material: K9, Bk7, GJS1, GJS2,GJS3, B270

Diameter:3mm-200mm±0.05mm

Center Thickness Tolerance:±0.05mm

Lens Alignment Error:≤3min

Surface Accuracy: λ/4@ 633nm or λ/10@633nm

Surface Quality:40/20. 60/40. 80/60

Effective Caliber: 90

Central Wavelength: 350nm-2500nm

Peak Transmittance: ＞90%Or customized according to customer requirements

Half peak bandwidth: 10nm-15nm

The short-wave pass filter is a cut-off filter in the interference filter. The cut-off filter is divided into a long-wave pass filter and a short-wave pass filter, that is, a certain wavelength range of light beam transmission is required to deviate from this The wavelength of the light beam changes to cut-off. Usually we call the filter that reflects (cuts off) the short-wave region and transmits the long-wave region as a long-wave pass filter. On the contrary, the short-wave direction is transparent, and the long-wave direction is cut-off to isolate The effect of long wave is called short wave pass filter.

N-BK7 Wedge prism Selection Guide
Coating name	wavelength band
Uncoated	Uncoated
A Coating	350nm-700nm
AB Coating	400nm-1100nm
B Coating	650nm-1050nm
C Coating	1050-1700nm
D Coating	1650nm-3000nm

Custom Wedge prism

Hengpu optics business unit has a wide breadth of manufacturing capabilities that allow us to offer a variety of custom Wedge prism for both OEM sales and low quantity one-off orders. Wedge prism with customer-defined sizes, focal lengths, substrate materials, cement materials, and coatings are all available as customs. In addition, we can offer optics that exceed the specifications of our stock catalog offerings. To receive more information or inquire about a custom order, please contact Tech Support : tom@hp-lens.com
