Achromatic triplet lens

Material: K9, BK7, FS, UVFS, CaF₂, ZnSe

Diameter:3mm-200mm±0.05mm

Center Thickness Tolerance:±0.05mm

Lens Alignment Error:≤3min

Surface Accuracy:λ/ 8 @

Surface Quality:40/20. 60/40. 80/60

Effective Caliber: 90%

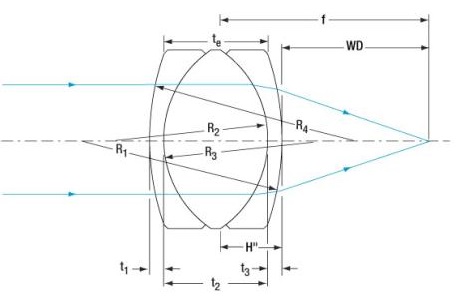

The achromatic triplet lens adopts a three-piece symmetrical design, which is converted by cementing a low-refractive-index lens between two high-refractive-index lenses, which reduces distortion and spherical aberration, and is very suitable for focusing and imaging magnification of collimated beams.

Example with BK7 material：These N-BK7 of achromatic triplet lens are available uncoated or with one of five antireflection coatings (-A, -AB, -B, -C, or -D), which reduces the amount of light reflected from each surface of the lens (see the Selection Guide table below for coating option). Since approximately 4% of the incident light is reflected at each surface of an uncoated substrate, the application of an AR coating improves transmission, which is important in low-light applications, and prevents the undesirable effects (e.g., ghost images) associated with multiple reflections. Having optics that are AR coated on both surfaces is particularly desirable for applications utilizing multiple optical elements. Please see the Graphs tab for additional coating information.

N-BK7 of Achromatic Triplet Lens Selection Guide
Coating name	wavelength band
Uncoated	Uncoated
A Coating	350nm-700nm
AB Coating	400nm-1100nm
B Coating	650nm-1050nm
C Coating	1050-1700nm
D Coating	1650nm-3000nm

Custom The achromatic triplet lens

Hengpu optics business unit has a wide breadth of manufacturing capabilities that allow us to offer a variety of custom The achromatic triplet lens for both OEM sales and low quantity one-off orders. Achromatic optics with customer-defined sizes, focal lengths, substrate materials, cement materials, and coatings are all available as customs. In addition, we can offer optics that exceed the specifications of our stock catalog offerings. To receive more information or inquire about a custom order, please contact Tech Support : tom@hp-lens.com
