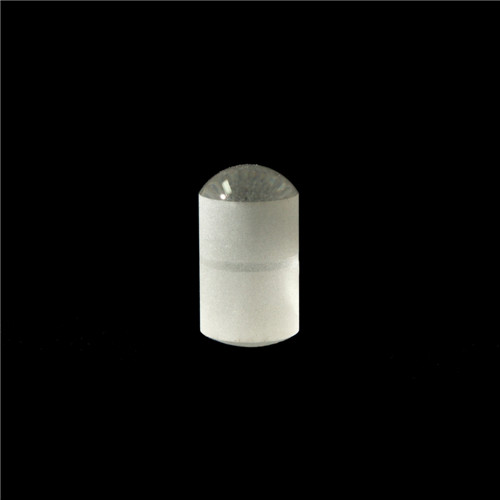

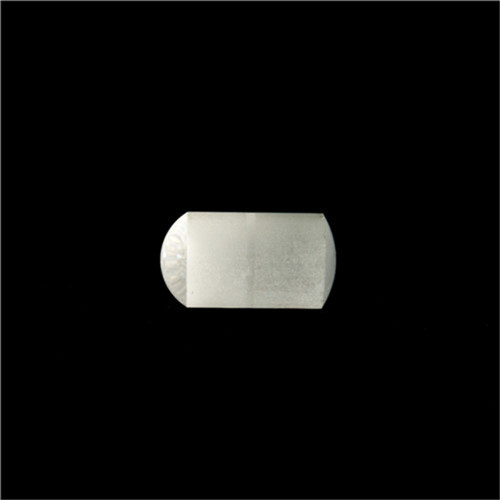

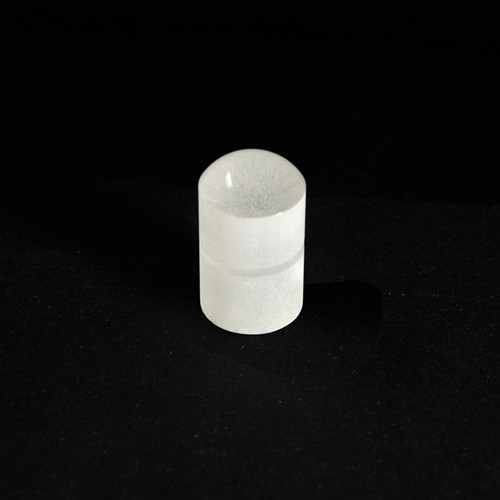

Rod lens

Material: Optical Glass,Bk-7

Diameter: 5mm-200mm±0.1mm

Center Thickness Tolerance: ±0.05mm

Lens Alignment Error: ≤3min

Surface Accuracy: λ/ 8 @

Surface Quality: 60/40.40/20.80/60

Effective Caliber: 90%

Coating: 190-380 nm UV AR coating 400-1200 nm visible near-infrared AR coating (532 nm single-point AR coating, 532 + 1064 nm double-point AR coating, 808 single-point AR coating, 1064 single-point AR coating ) And the bandwidth anti-reflection film of this area.
Infrared anti-reflection film: 1560 nanometer anti-reflection film, 3-5 micron anti-reflection film, 8-12 and 7-14 micron anti-reflection film.

Medium and high reflection film: 1,355 nm / 532 nm / 635 nm / 808 nm / 1064 nm single point, double point,three point laser reflection film.

Rod Lens is designed for use in a variety of laser and imaging applications. The addition of this product line is part of a
continued effort to support current trends toward miniaturization.

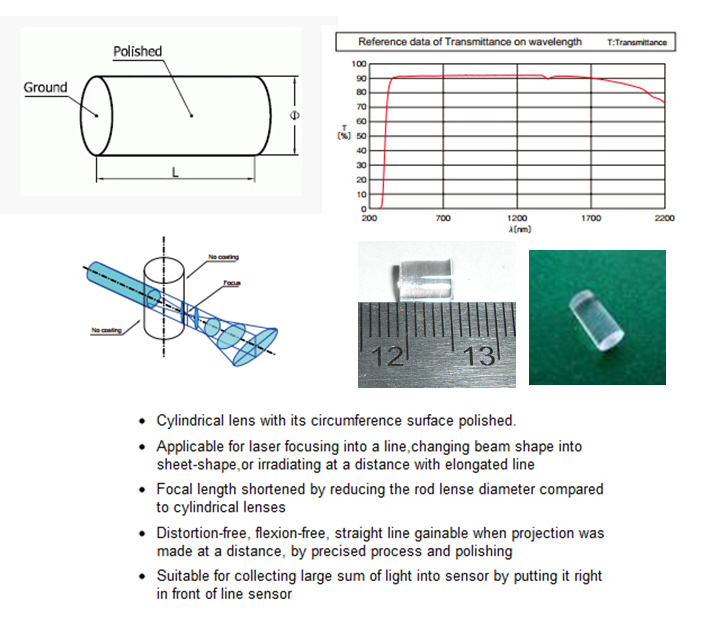

HENGPU can many kinds rod lens based on different material and sizes. N-BK7 and UV Fused Silica substrates are available. Its circumference and both ends can be polished upon customer requirement. Its optical performance is similar to a cylinder lens, the light passing through the diameter of the rod lens will be focused into a line.

For more details please contact technical engineers support email: tom@hp-lens.com
