Prisms

  • Wedge prism
  • Wedge prism
  • Wedge prism
Wedge prism Wedge prism Wedge prism

Wedge prism

  • Name: Wedge prism
  • Place of Origin: Shaanxi, China
  • Surface quality: 20/10--80/60
  • Supply Ability: 100000 Piece/Pieces per Month

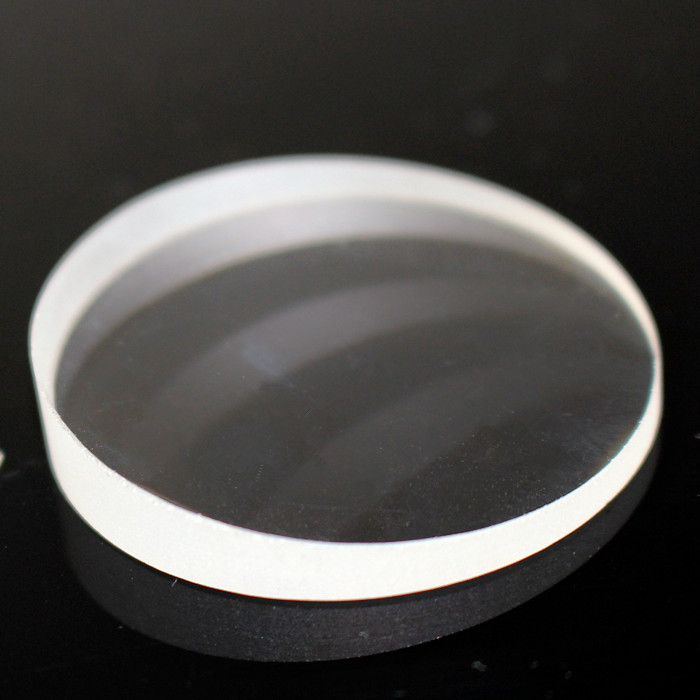

  • Description: Wedge prism
  • INQUIRY   EMAIL

Material: K9, BK7, FS, UVFS, CaF₂, ZnSe

Diameter:3mm-200mm±0.05mm

Center Thickness Tolerance:±0.05mm

Lens Alignment Error:≤3min

Surface Accuracy:λ/ 8 @

Surface Quality:40/20. 60/40. 80/60

Effective Caliber: 90

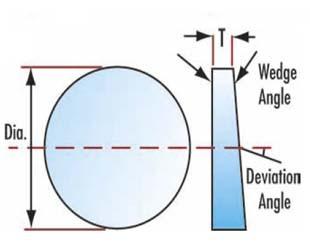

A wedge prism is an optical device with an oblique surface, mainly used for beam control conversion in the optical field. In the optical field, the wedge prism is an ideal optical path adjustment device. Two rotatable prisms can adjust the direction of the outgoing beam within a certain range (10°).

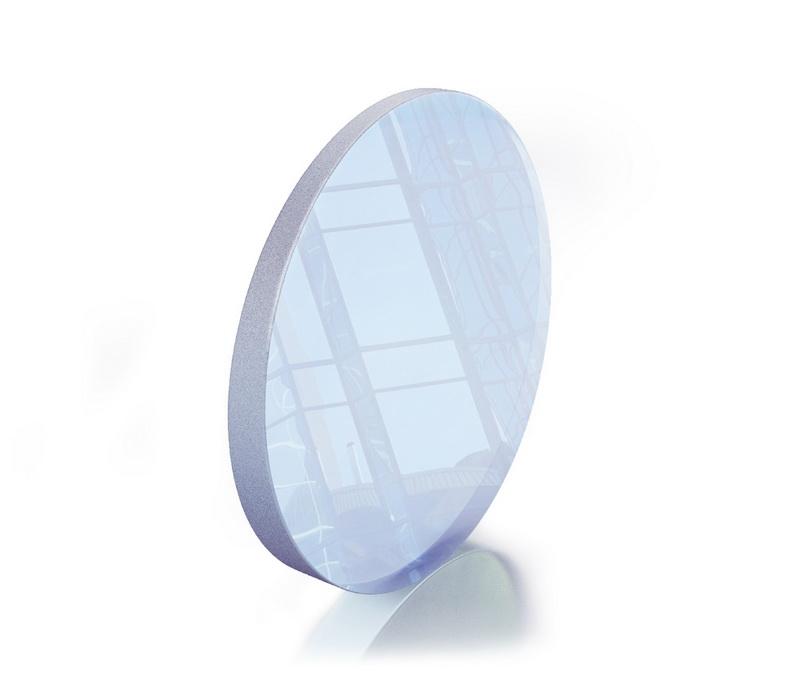

Example with BK7 material:These N-BK7 Wedge prism are available uncoated or with one of five antireflection coatings (-A, -AB, -B, -C, or -D), which reduces the amount of light reflected from each surface of the lens (see the Selection Guide table below for coating option). Since approximately 4% of the incident light is reflected at each surface of an uncoated substrate, the application of an AR coating improves transmission, which is important in low-light applications, and prevents the undesirable effects (e.g., ghost images) associated with multiple reflections. Having optics that are AR coated on both surfaces is particularly desirable for applications utilizing multiple optical elements. Please see the Graphs tab for additional coating information.

N-BK7 Wedge prism Selection Guide
Coating name wavelength band
Uncoated Uncoated
A Coating 350nm-700nm
AB Coating 400nm-1100nm
B Coating 650nm-1050nm
C Coating 1050-1700nm
D Coating 1650nm-3000nm

Custom Wedge prism

Hengpu optics business unit has a wide breadth of manufacturing capabilities that allow us to offer a variety of custom Wedge prism for both OEM sales and low quantity one-off orders. Wedge prism with customer-defined sizes, focal lengths, substrate materials, cement materials, and coatings are all available as customs. In addition, we can offer optics that exceed the specifications of our stock catalog offerings. To receive more information or inquire about a custom order, please contact Tech Support :tom@hp-lens.com
