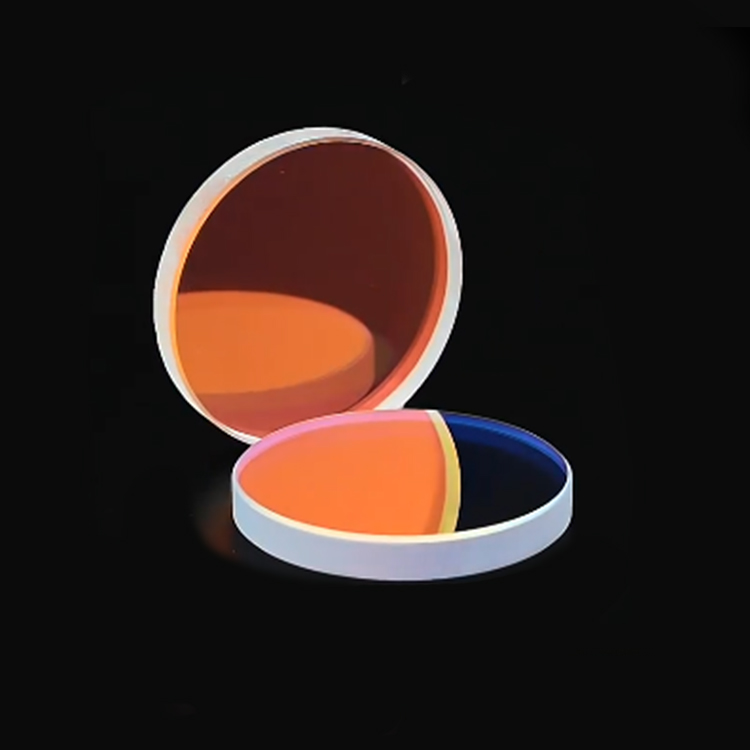

Reflecting mirror

45° Reflective lens

Material:optical glasss
Color:clear
Coating:customized
Wavelength:as required
Description: 45° Reflective mirror
INQUIRY EMAIL

Material	K9, Bk7, GJS1, GJS2,GJS3, B270
Diameter	3mm-200mm±0.1m
Center Thickness Tolerance	±0.1mm
Lens Alignment Error	≤3min
Surface Accuracy	λ/4@ 633nm or λ/10@633nm
Surface Quality	40/20. 60/40. 80/60
Wavelength	As required
Coating	High reflector

N-BK7 Wedge prism Selection Guide
Coating name	wavelength band
Uncoated	Uncoated
A Coating	350nm-700nm
AB Coating	400nm-1100nm
B Coating	650nm-1050nm
C Coating	1050-1700nm
D Coating	1650nm-3000nm

Custom Flat mirror

Hengpu optics business unit has a wide breadth of manufacturing capabilities that allow us to offer a variety of custom Flat mirror for both OEM sales and low quantity one-off orders. Flat mirror with customer-defined sizes, focal lengths, substrate materials, cement materials, and coatings are all available as customs. In addition, we can offer optics that exceed the specifications of our stock catalog offerings. To receive more information or inquire about a custom order, please contact Tech Support : jessie@hp-lens.com
