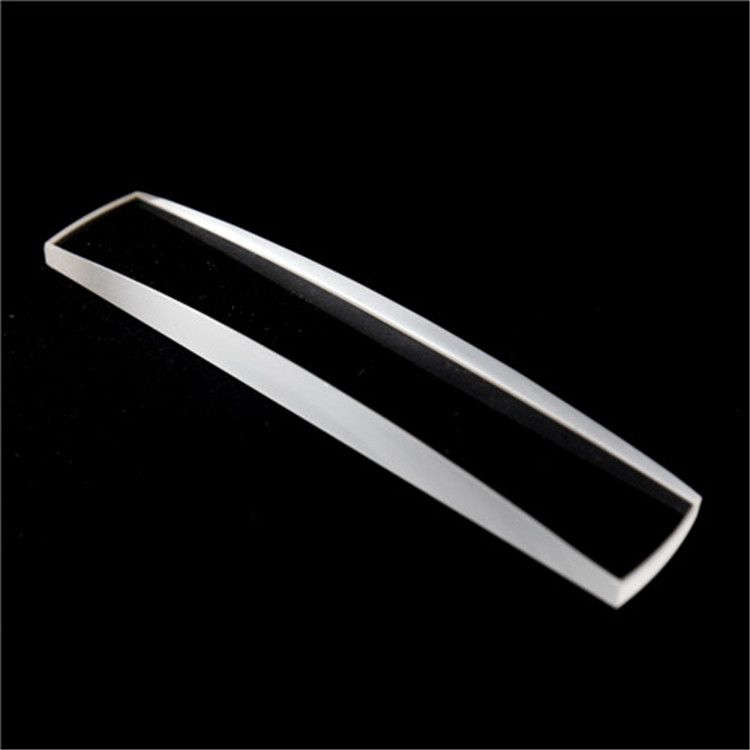

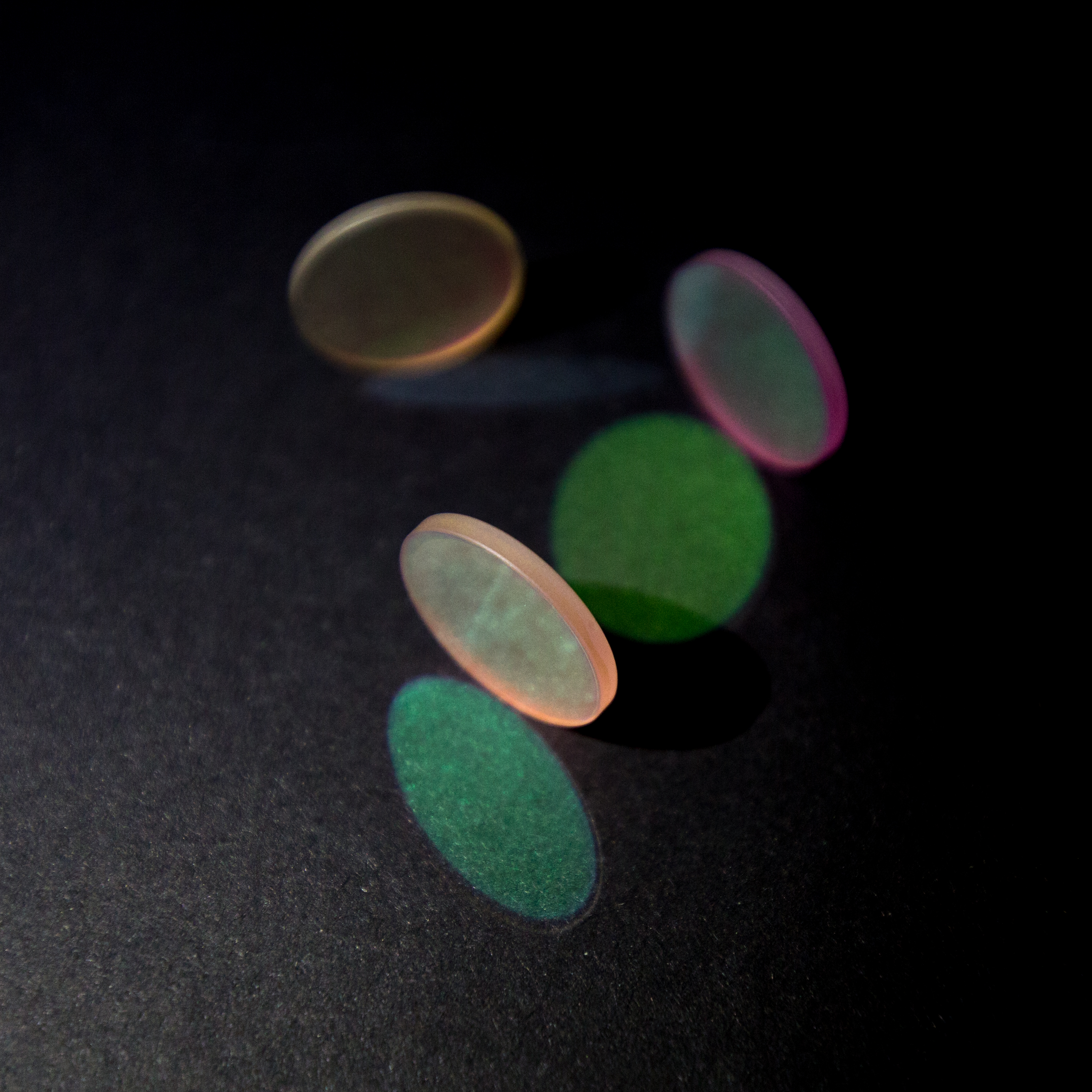

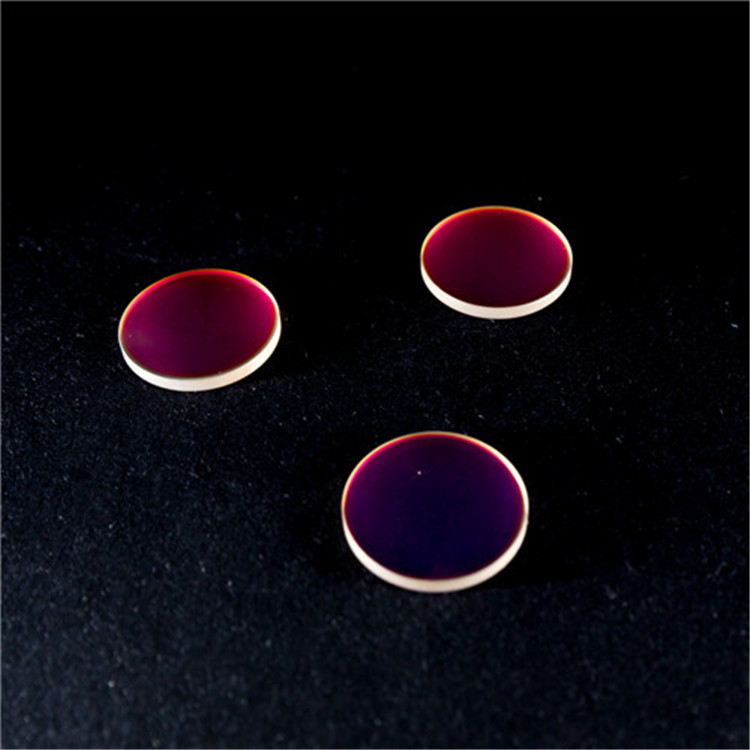

High antiplane lens

Material: Optical Glass,Bk-7

Diameter: 5mm-200mm±0.1mm

Center Thickness Tolerance: ±0.05mm

Lens Alignment Error: ≤3min

Surface Accuracy: λ/ 8 @

Surface Quality: 60/40.40/20.80/60

Effective Caliber: 90%

Coating: 190-380 nm UV AR coating 400-1200 nm visible near-infrared AR coating (532 nm single-point AR coating, 532 + 1064 nm double-point AR coating, 808 single-point AR coating, 1064 single-point AR coating ) And the bandwidth anti-reflection film of this area.
Infrared anti-reflection film: 1560 nanometer anti-reflection film, 3-5 micron anti-reflection film, 8-12 and 7-14 micron anti-reflection film.

Medium and high reflection film: 1,355 nm / 532 nm / 635 nm / 808 nm / 1064 nm single point, double point,three point laser reflection film.

An object that has a flat, smooth surface and is capable of imaging is called a plane mirror. Formed by an extension of the opposite direction of the reflected light from an object as it is reflected by a plane mirror. Calm Water, polished metal surface, glass plate, etc. are equivalent to flat mirror. A mirror whose reflector is a smooth plane is called a plane mirror.

We can customized lenses of various styles and sizes according to your request/sample/drawing

welcome to inquiry
