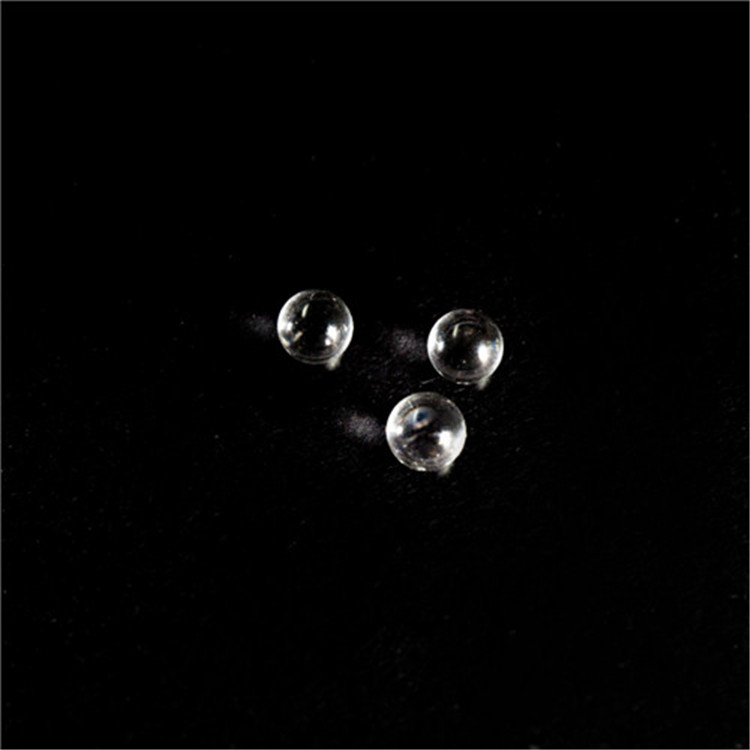

Spherical lens

Material:Optical Glass,Bk-7

Diameter:5mm-200mm±0.1mm

Center Thickness Tolerance:±0.05mm

Lens Alignment Error:≤3min

Surface Accuracy:λ/ 8 @

Surface Quality:60/40.40/20.80/60

Effective Caliber:90%

Coating:190-380 nm UV AR coating 400-1200 nm visible near-infrared AR coating (532 nm single-point AR coating, 532 + 1064 nm double-pointAR coating, 808 single-point AR coating, 1064 single-point AR coating ) And the bandwidth anti-reflection film of this area.
Infrared anti-reflection film: 1560 nanometer anti-reflection film, 3-5 micron anti-reflection film, 8-12 and 7-14 micronanti-reflection film.

Medium and high reflection film: 1,355 nm / 532 nm / 635 nm / 808 nm / 1064 nm single point, double point,three point laser reflection film.

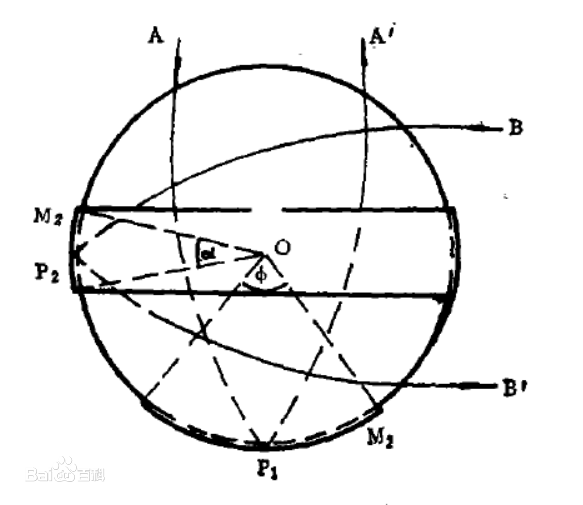

Spherical lens is widely used, which can be roughly divided into two categories: 1) making use of the reflective light energy of the spherical lens to reflect back to the incident light source direction, making traffic signs, mixing paint for road marking, or making reflection or photography screen. ② It can be used as grinding medium for metal workpieces, shot peening and cleaning treatment, and filling material for plastic products. Hollow glass beads have the advantages of light weight, high strength and low thermal conductivity. They can be used as lightweight thermal insulation materials for aerospace technology, ship materials and chemical equipment.

We can customized lenses of various styles and sizes according to your request/sample/drawing

welcome to inquiry
